The Android Modbus home page


The purpose of this program is to show the feasibility of a Modbus TCP HMI client application for the Android platform.


I tested the client program using a CoDeSys xv100 panelPLC (with Modbus TCP libraries) as a server.


I bridged the Ethernet to wireless using the 20€ Fonera access point.


I loaded the program in Google's Nexus One smartphone. .


The starting screenshot of the smartphone.


The starting screenshot of the panelPLC.


The application look when the operator writes the first word.


The result of writing the first word in the panelPLC.


The screenshot of the panelPLC when the operator changes the value of the second word.


The screenshot of the panelPLC when the operator has changed the value of the second word.


The screenshot of the smartphone shows that the second word has been changed.


The Ethernet transactions beforehand described:

No.     Time        Source                Destination           Protocol Info
      1 0.000000    192.168.0.101         192.168.0.99          TCP      42267 > asa-appl-proto [SYN] Seq=0 Win=5840 Len=0 MSS=1460 TSV=536631 TSER=0 WS=1
      2 0.000702    MicroInn_00:c7:99     Broadcast             ARP      Who has 192.168.0.101?  Tell 192.168.0.99
      3 2.951506    MicroInn_00:c7:99     Broadcast             ARP      Who has 192.168.0.101?  Tell 192.168.0.99
      4 2.954412    Htc_96:0a:68          MicroInn_00:c7:99     ARP      192.168.0.101 is at 00:23:76:96:0a:68
      5 2.954984    192.168.0.99          192.168.0.101         TCP      asa-appl-proto > 42267 [SYN, ACK] Seq=0 Ack=1 Win=33580 Len=0 MSS=1460 WS=0 TSV=0 TSER=0
      6 2.962215    192.168.0.101         192.168.0.99          TCP      42267 > asa-appl-proto [ACK] Seq=1 Ack=1 Win=5840 Len=0 TSV=536927 TSER=0
      7 2.982658    192.168.0.101         192.168.0.99          Modbus/TCP    query [ 1 pkt(s)]: trans:     0; unit:   1, func:   3: Read multiple registers.
      8 3.032716    192.168.0.99          192.168.0.101         Modbus/TCP response [ 1 pkt(s)]: trans:     0; unit:   1, func:   3: Read multiple registers.
      9 3.035050    192.168.0.101         192.168.0.99          TCP      42267 > asa-appl-proto [ACK] Seq=13 Ack=14 Win=5840 Len=0 TSV=536935 TSER=57232
    130 23.464980   192.168.0.101         192.168.0.99          Modbus/TCP    query [ 1 pkt(s)]: trans:     0; unit:   1, func:  16: Write Multiple Registers.
    131 23.514588   192.168.0.99          192.168.0.101         Modbus/TCP response [ 1 pkt(s)]: trans:     0; unit:   1, func:  16: Write Multiple Registers.
    132 23.518533   192.168.0.101         192.168.0.99          TCP      42267 > asa-appl-proto [ACK] Seq=510 Ack=546 Win=5840 Len=0 TSV=538983 TSER=57437
The Wireshark .pcap file of the transactions: android_modbus.pcap


A video of the operation using the Eclipse emulator.

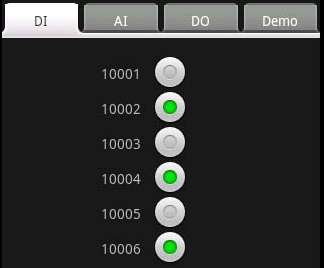

Of course pages can be customized the way you prefer...
Here are some examples...
